.125″ Knifemaking Hardware

PivotsPivot ScrewsPivot BearingsPivot Thrust Washers



The pivot and screw are sold separately.


.125″ Folder Pivots


Our pivots are machined to very tight tolerances of ± .0002″ (2 ten-thousandths of an inch).

These pivots are made from 416 stainless steel and heat treated full hard to approximately HRC 42.

All our pivots are professionally heat treated in a vacuum furnace. This leaves the pivots with a shiny surface.

Ream the blade pivot hole and liners with a .1250″ reamer. The blade will move freely on the pivot shaft. If you are not using a reamer, buy one. You will never achieve tight tolerances using only a drill bit to make your pivot holes.
The screws are 2-56. The high number of threads make it easy to adjust the blade tension.

.125″ Stainless Pivots

Desc.# PcsPriceQtySKU
.125

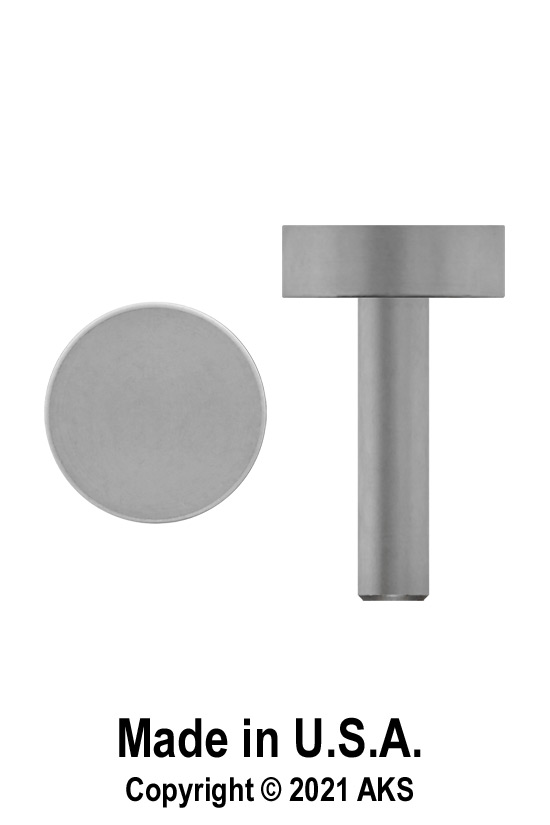

.125″ Female Pivot, 416 Stainless, Flat Head

1 $4.00
-
+
spinner
PT125-ALSS-001
.125

.125″ Female Pivot, 416 Stainless, Flat Head

10 $36.00
-
+
spinner
PT125-ALSS-010
.125

.125″ Female Pivot, 416 Stainless, Flat Head

100 $320.00
-
+
spinner
PT125-ALSS-100
.125

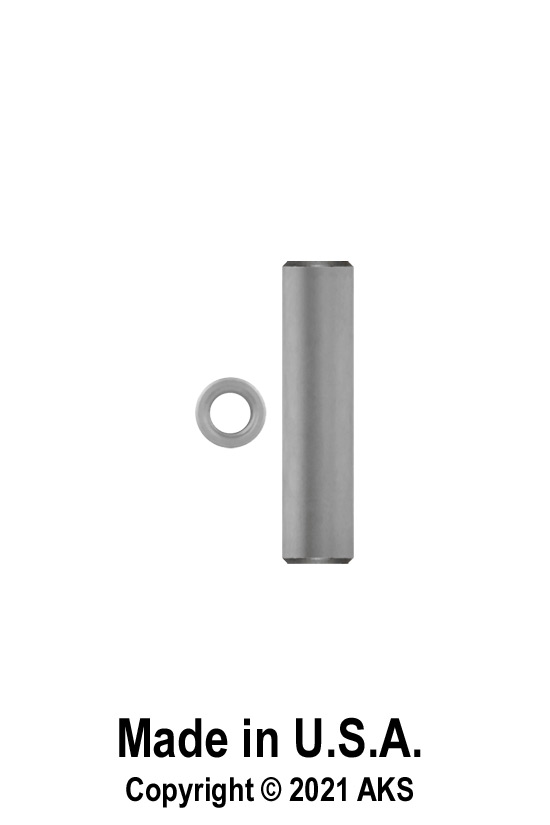

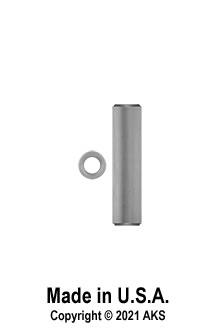

.125″ Barrel Pivot, 416 Stainless

1 $2.00
-
+
spinner
PT125-BASS-001
.125

.125″ Barrel Pivot, 416 Stainless

10 $19.00
-
+
spinner
PT125-BASS-010
.125

.125″ Barrel Pivot, 416 Stainless

100 $180.00
-
+
spinner
PT125-BASS-100
.125

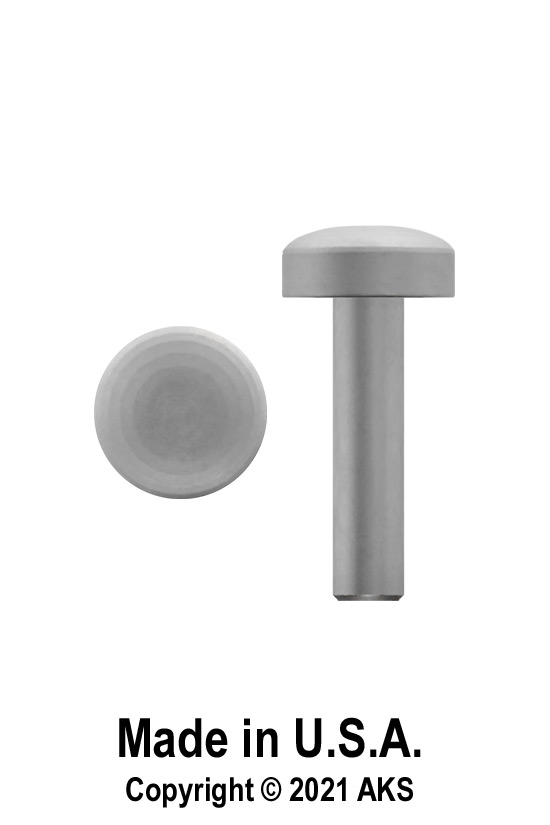

.125″ Female Pivot, 416 Stainless, Dome Head

1 $4.00
-
+
spinner
PT125-CLSS-001
.125

.125″ Female Pivot, 416 Stainless, Dome Head

10 $36.00
-
+
spinner
PT125-CLSS-010
.125

.125″ Female Pivot, 416 Stainless, Dome Head

100 $320.00
-
+
spinner
PT125-CLSS-100

.125″ Pivot Screws


.125″ Pivot Screws

Desc.# PcsPriceQtySKU
.125

.125″ Pivot Screw, Flat Blank Head, 303 Stainless

1 $2.00
-
+
spinner
PS125-FBSS-001
.125

.125″ Pivot Screw, Flat Blank Head, 303 Stainless

10 $18.00
-
+
spinner
PS125-FBSS-010
.125

.125″ Pivot Screw, Flat Torx Head, 303 Stainless

1 $2.00
-
+
spinner
PS125-FTSS-001
.125

.125″ Pivot Screw, Flat Torx Head, 303 Stainless

10 $18.00
-
+
spinner
PS125-FTSS-010
.125

.125″ Pivot Screw, Flat Torx Head, 303 Stainless

100 $160.00
-
+
spinner
PS125-FTSS-100
.125

.125″ Pivot Screw, Pan Head, Beta Titanium

10 $9.00
-
+
spinner
PS125-PHBT-010
.125

.125″ Pivot Screw, Pan Head, Beta Titanium

100 $80.00
-
+
spinner
PS125-PHBT-100
.125

.125″ Pivot Screw, Pan Head, CP Titanium

1 $1.00
-
+
spinner
PS125-PHCT-001
.125

.125″ Pivot Screw, Pan Head, CP Titanium

10 $5.00
-
+
spinner
PS125-PHCT-010
.125

.125″ Pivot Screw, Pan Head, CP Titanium

100 $45.00
-
+
spinner
PS125-PHCT-100
.125

.125″ Pivot Screw, Pan Head, 18-8 Stainless, Black

1 $1.00
-
+
spinner
PS125-PHSSB-001
.125

.125″ Pivot Screw, Pan Head, 18-8 Stainless, Black

10 $2.00
-
+
spinner
PS125-PHSSB-010
.125

.125″ Pivot Screw, Pan Head, 18-8 Stainless, Black

100 $18.00
-
+
spinner
PS125-PHSSB-100

.125″ Pivot Bearings

Pivot Bearings

The FBCE125 ball bearings are Grade 10 ceramic. The FBS125 ball bearings are Grade 10 hardened 440C. All the carriers are stainless steel.

All the thrust bearings work with our .125″ pivot.

.125″ Pivot Bearings

Desc.# PcsPriceQtySKU
.125

.125″ Ceramic Pivot Bearings, .047″ Balls

2 $6.00
-
+
spinner
FBCE125-0472-002
.125

.125″ Ceramic Pivot Bearings, .047″ Balls

20 $54.00
-
+
spinner
FBCE125-0472-020
.125

.125″ Ceramic Pivot Bearings, .047″ Balls

200 $480.00
-
+
spinner
FBCE125-0472-200
.125

.125″ Pivot, 440C Stainless Bearings, .047″ Balls

20 $27.00
-
+
spinner
FBS125-0472-020
.125

.125″ Pivot, 440C Stainless Bearings, .047″ Balls

200 $240.00
-
+
spinner
FBS125-0472-200
.125

.125″ Pivot, 440C Stainless Bearings, .062″ Balls

2 $3.00
-
+
spinner
FBS125-0625-002
.125

.125″ Pivot, 440C Stainless Bearings, .062″ Balls

20 $27.00
-
+
spinner
FBS125-0625-020
.125

.125″ Pivot, 440C Stainless Bearings, .062″ Balls

200 $240.00
-
+
spinner
FBS125-0625-200

.125″ Pivot Thrust Washers

.125 pivot thrust washers


These thrust washers are used with the thrust bearings.

The washer provides a hardened surface for the ball bearings to run against.

The washers made from .020″ stainless steel that is heat treated to HRC 59-60. The inside diameter is .127″, the outside diameter is .262″

.125″ Pivot Thrust Washers

Desc.# PcsPriceQtySKU
.125

.125″ Pivot Hardened Stainless Thrust Washers

20 $8.00
-
+
spinner
TWS125-020
.125

.125″ Pivot Hardened Stainless Thrust Washers

200 $72.00
-
+
spinner
TWS125-200
.125

.125″ Pivot Hardened Stainless Thrust Washers

2000 $640.00
-
+
spinner
TWS125-2000
