Knifemaking Folder Pivots

.125″ Pivots .187″ Pivots .250″ Pivots



The pivot and screw are sold separately.


.125″ Folder Pivots


Our pivots are machined to very tight tolerances of ± .0002″ (2 ten-thousandths of an inch).

These pivots are made from 416 stainless steel and heat treated full hard to approximately HRC 42.

All our pivots are professionally heat treated in a vacuum furnace. This leaves the pivots with a shiny surface.

Ream the blade pivot hole and liners with a .1250″ reamer. The blade will move freely on the pivot shaft. If you are not using a reamer, buy one. You will never achieve tight tolerances using only a drill bit to make your pivot holes.
The screws are 2-56. The high number of threads make it easy to adjust the blade tension.

.125″ Stainless Pivots

Desc.# PcsPriceQtySKU
.125

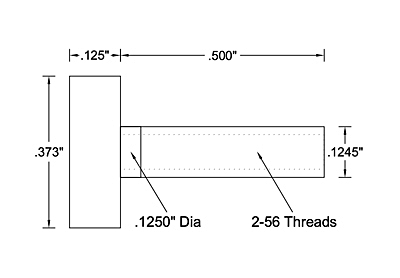

.125″ Female Pivot, 416 Stainless, Flat Head

1 $4.00
-
+
spinner
PT125-ALSS-001
.125

.125″ Female Pivot, 416 Stainless, Flat Head

10 $36.00
-
+
spinner
PT125-ALSS-010
.125

.125″ Female Pivot, 416 Stainless, Flat Head

100 $320.00
-
+
spinner
PT125-ALSS-100
.125

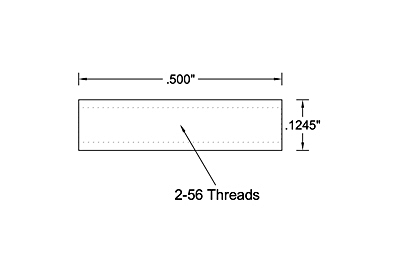

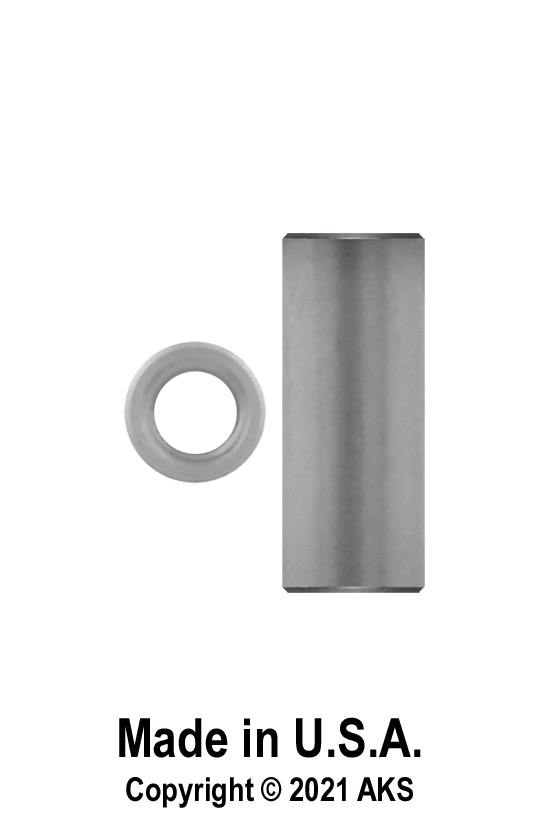

.125″ Barrel Pivot, 416 Stainless

1 $2.00
-
+
spinner
PT125-BASS-001
.125

.125″ Barrel Pivot, 416 Stainless

10 $19.00
-
+
spinner
PT125-BASS-010
.125

.125″ Barrel Pivot, 416 Stainless

100 $180.00
-
+
spinner
PT125-BASS-100
.125

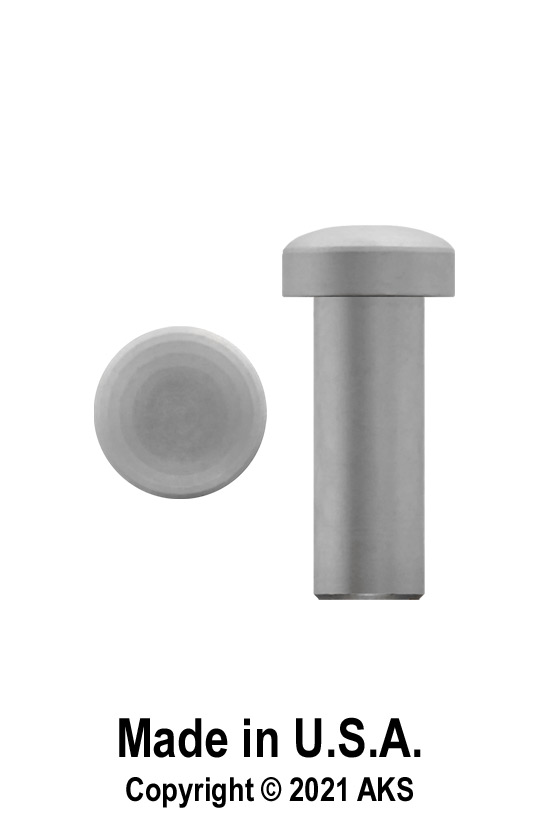

.125″ Female Pivot, 416 Stainless, Dome Head

1 $4.00
-
+
spinner
PT125-CLSS-001
.125

.125″ Female Pivot, 416 Stainless, Dome Head

10 $36.00
-
+
spinner
PT125-CLSS-010
.125

.125″ Female Pivot, 416 Stainless, Dome Head

100 $320.00
-
+
spinner
PT125-CLSS-100

.187″ Folder Pivots

.187" Stailnless Pivots

Our pivots are machined to very tight tolerances of ± .0002″ (2 ten-thousandths of an inch).

These pivots are made from 416 stainless steel and heat treated full hard to approximately HRC 42.

All our pivots are professionally heat treated in a vacuum furnace. This leaves the pivots with a shiny surface.

Ream the blade pivot hole and liners with a .1875″ reamer. The blade will move freely on the pivot shaft. The raised area on the pivot shaft next to the head will press fit into the liner and prevent the pivot from spinning when adjusting the blade tension. If you are not using a reamer, buy one. You will never achieve tight tolerances using only a drill bit to make your pivot holes.

.187″ Stainless Pivots

Desc.# PcsPriceQtySKU
.187

.187″ Female Pivot, 416 SS, Flat Head

1 $4.00
-
+
spinner
PT187-ALSS-001
.187

.187″ Female Pivot, 416 SS, Flat Head

10 $36.00
-
+
spinner
PT187-ALSS-010
.187

.187″ Female Pivot, 416 SS, Flat Head

100 $320.00
-
+
spinner
PT187-ALSS-100
.187

.187″ Barrel Pivot, 416 SS

1 $3.00
-
+
spinner
PT187-BASS-001
.187

.187″ Barrel Pivot, 416 SS

10 $27.00
-
+
spinner
PT187-BASS-010
.187

.187″ Barrel Pivot, 416 SS

100 $240.00
-
+
spinner
PT187-BASS-100
.187

.187″ Female Pivot, 416 SS, Dome Head

1 $4.00
-
+
spinner
PT187-CLSS-001
.187

.187″ Female Pivot, 416 SS, Dome Head

10 $36.00
-
+
spinner
PT187-CLSS-010
.187

.187″ Female Pivot, 416 SS, Dome Head

100 $320.00
-
+
spinner
PT187-CLSS-100

.250″ Folder Pivots

.250" stainless pivot

Our pivots are machined to very tight tolerances of ± .0002″ (2 ten-thousandths of an inch).

These pivots are made from 416 stainless steel and heat treated full hard to approximately HRC 42.

All our pivots are professionally heat treated in a vacuum furnace. This leaves the pivots with a shiny surface.

Ream the blade pivot hole and liners with a .2500″ reamer. The blade will move freely on the pivot shaft. The raised area on the pivot shaft next to the head will press fit into the liner and prevent the pivot from spinning when adjusting the blade tension. If you are not using a reamer, buy one. You will never achieve tight tolerances using only a drill bit to make your pivot holes.
The screw is #8 with 64 threads per inch. The high number of threads make it easy to adjust the blade tension. The thread is non-standard.

.250″ Stainless Pivots

Desc.# PcsPriceQtySKU
.250

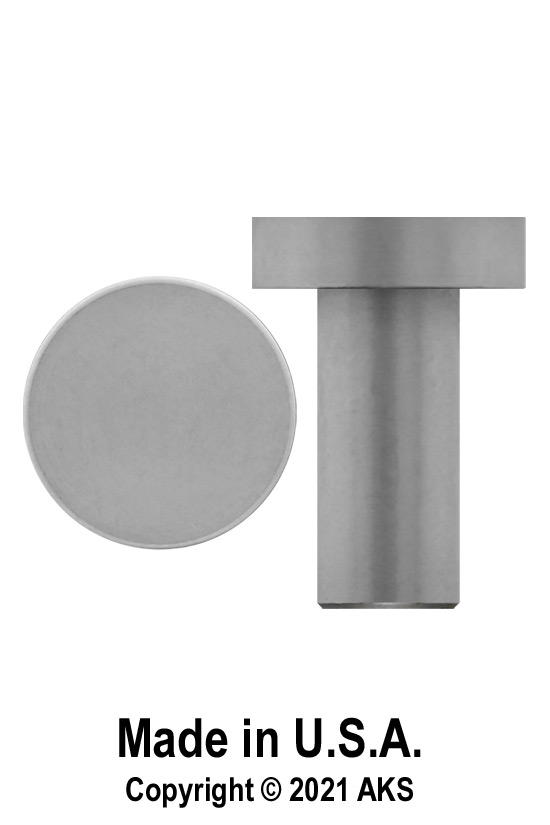

.250″ Female Pivot, 416 SS, .475″ Flat Head

1 $4.00
-
+
spinner
PT250-A1SS-001
.250

.250″ Female Pivot, 416 SS, .475″ Flat Head

10 $36.00
-
+
spinner
PT250-A1SS-010
.250

.250″ Female Pivot, 416 SS, .475″ Flat Head

100 $320.00
-
+
spinner
PT250-A1SS-100
.250

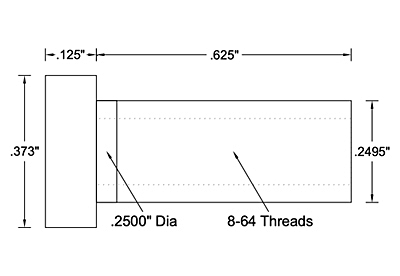

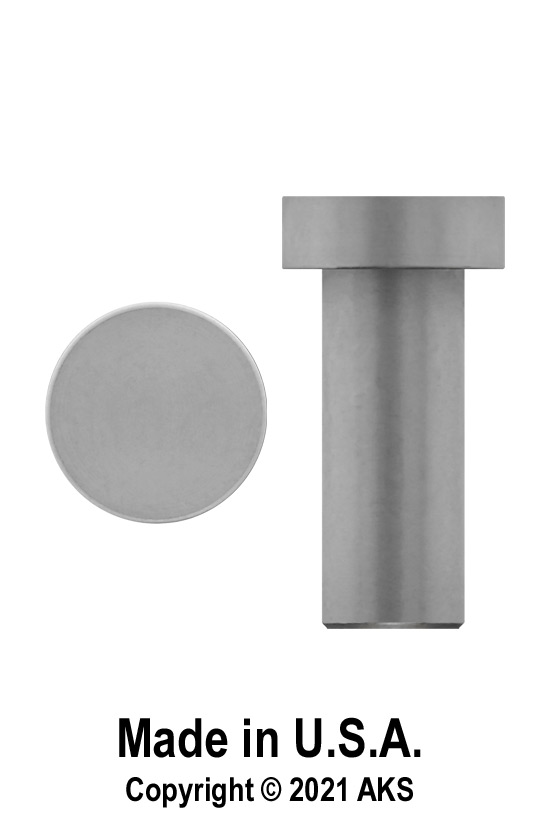

.250″ Female Pivot, 416 SS, .373″ Flat Head

1 $4.00
-
+
spinner
PT250-A2SS-001
.250

.250″ Female Pivot, 416 SS, .373″ Flat Head

10 $36.00
-
+
spinner
PT250-A2SS-010
.250

.250″ Female Pivot, 416 SS, .373″ Flat Head

100 $320.00
-
+
spinner
PT250-A2SS-100
.250

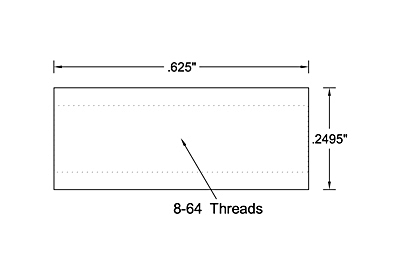

.250″ Barrel Pivot, 416 SS

1 $3.00
-
+
spinner
PT250-BASS-001
.250

.250″ Barrel Pivot, 416 SS

10 $27.00
-
+
spinner
PT250-BASS-010
.250

.250″ Barrel Pivot, 416 SS

100 $240.00
-
+
spinner
PT250-BASS-100
