.187″ Knifemaking Hardware

Folder PivotsPivot ScrewsPivot BearingsPivot Thrust Washers


.187″ Folder Pivots

.187" Stailnless Pivots

Our pivots are machined to very tight tolerances of ± .0002″ (2 ten-thousandths of an inch).

These pivots are made from 416 stainless steel and heat treated full hard to approximately HRC 42.

All our pivots are professionally heat treated in a vacuum furnace. This leaves the pivots with a shiny surface.

Ream the blade pivot hole and liners with a .1875″ reamer. The blade will move freely on the pivot shaft. The raised area on the pivot shaft next to the head will press fit into the liner and prevent the pivot from spinning when adjusting the blade tension. If you are not using a reamer, buy one. You will never achieve tight tolerances using only a drill bit to make your pivot holes.

.187″ Stainless Pivots

Desc.# PcsPriceQtySKU
.187

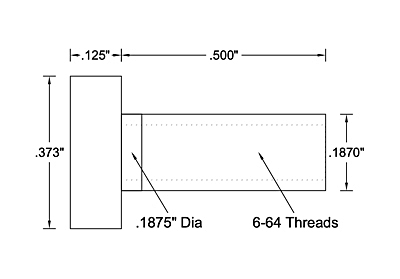

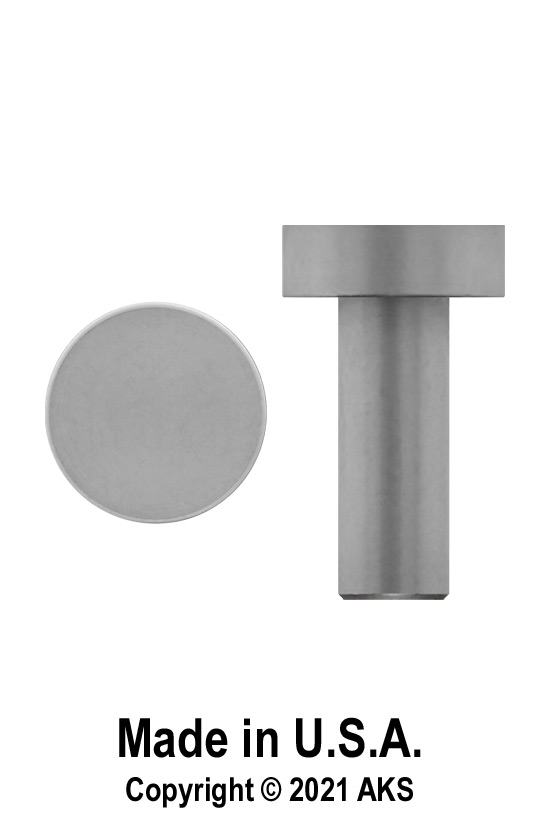

.187″ Female Pivot, 416 SS, Flat Head

1 $4.00
-
+
spinner
PT187-ALSS-001
.187

.187″ Female Pivot, 416 SS, Flat Head

10 $36.00
-
+
spinner
PT187-ALSS-010
.187

.187″ Female Pivot, 416 SS, Flat Head

100 $320.00
-
+
spinner
PT187-ALSS-100
.187

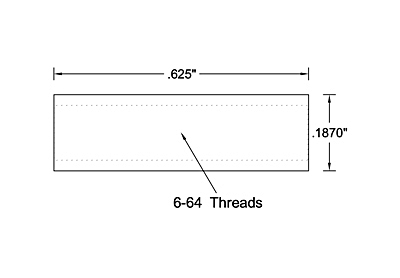

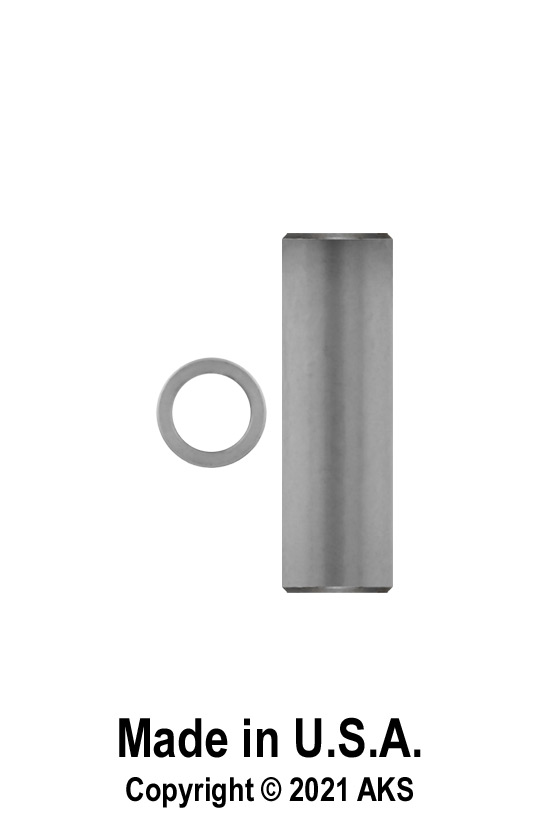

.187″ Barrel Pivot, 416 SS

1 $3.00
-
+
spinner
PT187-BASS-001
.187

.187″ Barrel Pivot, 416 SS

10 $27.00
-
+
spinner
PT187-BASS-010
.187

.187″ Barrel Pivot, 416 SS

100 $240.00
-
+
spinner
PT187-BASS-100
.187

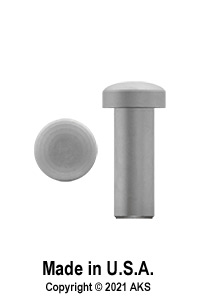

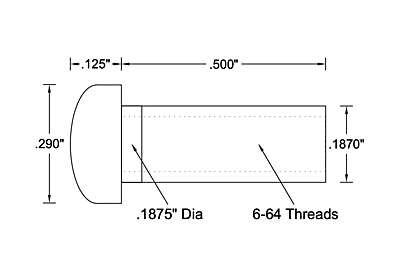

.187″ Female Pivot, 416 SS, Dome Head

1 $4.00
-
+
spinner
PT187-CLSS-001
.187

.187″ Female Pivot, 416 SS, Dome Head

10 $36.00
-
+
spinner
PT187-CLSS-010
.187

.187″ Female Pivot, 416 SS, Dome Head

100 $320.00
-
+
spinner
PT187-CLSS-100

.187″ Pivot Screws


Our machined screws are machined to very tight tolerances of ± .0002″ (2 ten-thousandths of an inch).

The screw is #6 with 64 threads per inch. The high number of threads make it easy to adjust the blade tension. The thread is non-standard.

The Torx drive is broached into the screw. This means Torx bits fit with no slop unlike other drives that are machined rather than broached. Broaching costs more, but the result is a higher quality screw. Also available in black pivot screws.

.187″ Pivot Screws

Desc.# PcsPriceQtySKU
.187

.187″ Pivot Screw, Dome Torx, SS, Black

1 $1.00
-
+
spinner
PS187-DHSS-001
.187

.187″ Pivot Screw, Dome Torx, SS, Black

10 $9.00
-
+
spinner
PS187-DHSS-010
.187

.187″ Pivot Screw, Dome Torx, SS, Black

100 $80.00
-
+
spinner
PS187-DHSS-100
.187

.187″ Pivot Screw, Enhanced Torx 2, 6-4 Ti

1 $5.00
-
+
spinner
PS187-E2T6-001
.187

.187″ Pivot Screw, Enhanced Torx 2, 6-4 Ti

10 $47.00
-
+
spinner
PS187-E2T6-010
.187

.187″ Pivot Screw, Enhanced Torx 2, 6-4 Ti

100 $440.00
-
+
spinner
PS187-E2T6-100
.187

.187″ Pivot Screw, Flat Blank, 416 SS

1 $2.00
-
+
spinner
PS187-FBSS-001
.187

.187″ Pivot Screw, Flat Blank, 416 SS

10 $18.00
-
+
spinner
PS187-FBSS-010
.187

.187″ Pivot Screw, Flat Blank, 416 SS

100 $160.00
-
+
spinner
PS187-FBSS-100
.187

.187″ Pivot Screw, Flat Blank, 6-4 Titanium

1 $3.00
-
+
spinner
PS187-FBT6-001
.187

.187″ Pivot Screw, Flat Blank, 6-4 Titanium

10 $27.00
-
+
spinner
PS187-FBT6-010
.187

.187″ Pivot Screw, Flat Blank, 6-4 Titanium

100 $240.00
-
+
spinner
PS187-FBT6-100
.187

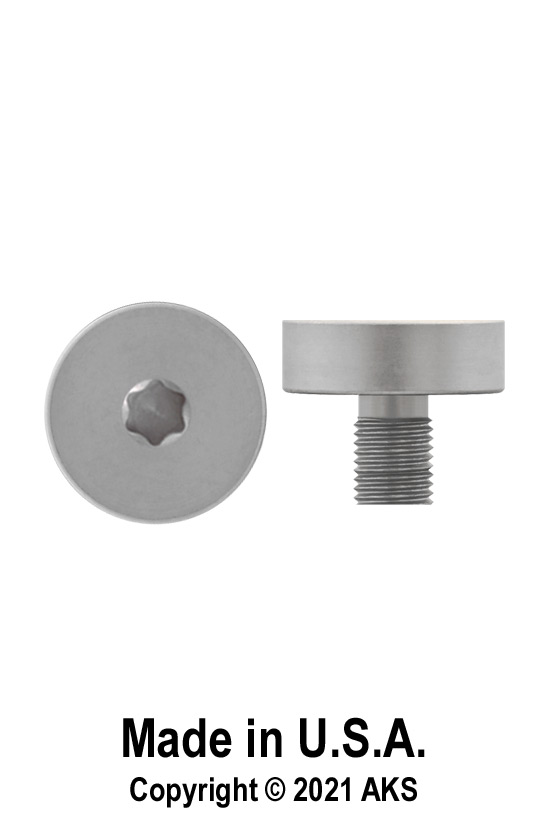

.187″ Pivot Screw, Flat Torx, 416 SS

1 $2.00
-
+
spinner
PS187-FTSS-001
.187

.187″ Pivot Screw, Flat Torx, 416 SS

10 $18.00
-
+
spinner
PS187-FTSS-010
.187

.187″ Pivot Screw, Flat Torx, 416 SS

100 $160.00
-
+
spinner
PS187-FTSS-100
.187

.187″ Pivot Screw, Flat Torx, 6-4 Titanium

1 $3.00
-
+
spinner
PS187-FTT6-001
.187

.187″ Pivot Screw, Flat Torx, 6-4 Titanium

10 $27.00
-
+
spinner
PS187-FTT6-010
.187

.187″ Pivot Screw, Flat Torx, 6-4 Titanium

100 $240.00
-
+
spinner
PS187-FTT6-100

.187″ Pivot Bearings


The FBCE187 ball bearings are Grade 10 ceramic. The FBS187 ball bearings are Grade 10 hardened 440C.
The carriers for both are stainless steel. We included a PS187 pivot in the photo for size reference.

.187″ Pivot Bearings

Desc.# PcsPriceQtySKU
.187

.187″ Ceramic Pivot Bearings, .062″ Balls

20 $54.00
-
+
spinner
FBCE187-0625-020
.187

.187″ Ceramic Pivot Bearings, .062″ Balls

200 $480.00
-
+
spinner
FBCE187-0625-200
.187

.187″ Pivot, 440C Stainless Bearings, .062″ Balls

20 $27.00
-
+
spinner
FBS187-0625-020
.187

.187″ Pivot, 440C Stainless Bearings, .062″ Balls

200 $240.00
-
+
spinner
FBS187-0625-200

.187″ Pivot Thrust Washers


These thrust washers are used with the thrust bearings.

The washer provides a hardened surface for the ball bearings to run against.

The washers made from .020″ stainless steel that is heat treated to HRC 59-60. The inside diameter is .190″, the outside diameter is .389″

.187″ Pivot Thrust Washers

Desc.# PcsPriceQtySKU
.187

.187″ Pivot Hardened Stainless Thrust Washers

20 $8.00
-
+
spinner
TWS187-020
.187

.187″ Pivot Hardened Stainless Thrust Washers

200 $72.00
-
+
spinner
TWS187-200
