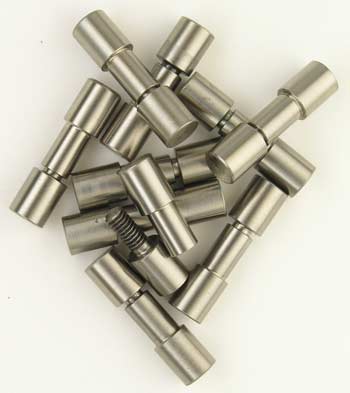

.125" Stainless Pivot:
Our pivots are machined to very tight tolerances of
-0.0 to +.0002".This pivot is made from 416 stainless steel and heat treated full hard to approximately HRC 42. All our pivots are professionally heat treated in a vacuum furnace. This leaves the pivots with a shiny surface. When getting items heat treated, you get what you pay for.
Ream the blade pivot hole and liners with a .1250" reamer. The blade will move freely on the pivot shaft. If you are not using a reamer, buy one. You will never achieve tight tolerances using only a drill bit to make your pivot holes.
The screws are 2-56. The high number of threads make it easy to adjust the blade tension.
The pivot and screws are sold together.
Description Item No Qty Price .125" Pivot PS125-001 1 $3 .125" Pivot PS125-010 10 $27 .125" Pivot PS125-100 100 $240
.187" Stainless Pivot:
Our pivots are machined to very tight tolerances of
-0.0 to +.0002".This pivot is made from 416 stainless steel and heat treated full hard to approximately HRC 42. All our pivots are professionally heat treated in a vacuum furnace. This leaves the pivots with a shiny surface. When getting items heat treated, you get what you pay for.
Ream the blade pivot hole and liners with a .1875" reamer. The blade will move freely on the pivot shaft. The raised area on the pivot shaft next to the head will press fit into the liner and prevent the pivot from spinning when adjusting the blade tension. If you are not using a reamer, buy one. You will never achieve tight tolerances using only a drill bit to make your pivot holes.
The screw is #6 with 64 threads per inch. The high number of threads make it easy to adjust the blade tension. The thread is non-standard.
The pivot and screw are sold together.
Description Item No Qty Price .187" Pivot PS187-001 1 $5 .187" Pivot PS187-010 10 $45 .187" Pivot PS187-100 100 $400

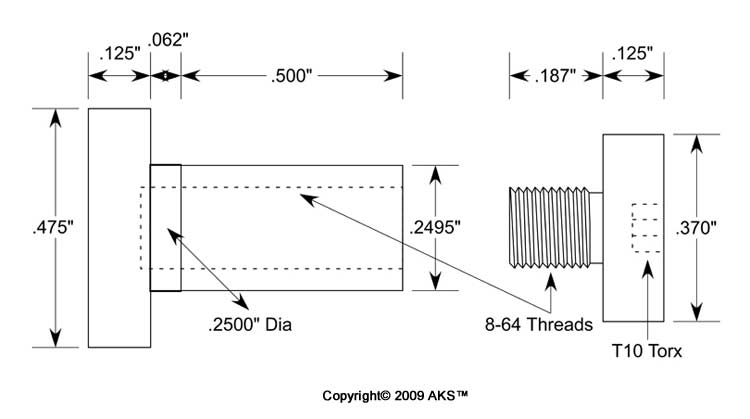

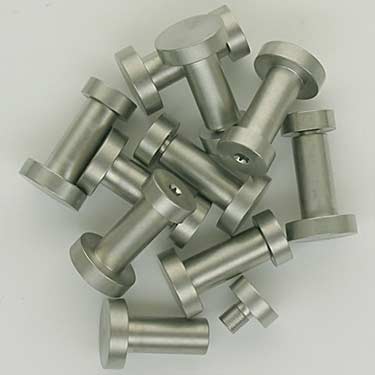

.250" Stainless Pivot:
Our pivots are machined to very tight tolerances of
-0.0 to +.0002".This pivot is made from 416 stainless steel and heat treated full hard to approximately HRC 42. All our pivots are professionally heat treated in a vacuum furnace. This leaves the pivots with a shiny surface. When getting items heat treated, you get what you pay for.
Ream the blade pivot hole and liners with a .2500" reamer. The blade will move freely on the pivot shaft. The raised area on the pivot shaft next to the head will press fit into the liner and prevent the pivot from spinning when adjusting the blade tension. If you are not using a reamer, buy one. You will never achieve tight tolerances using only a drill bit to make your pivot holes.
The screw is #8 with 64 threads per inch. The high number of threads make it easy to adjust the blade tension. The thread is non-standard.
The pivot and screw are sold together.
Description Item No Qty Price .250" Pivot PS250-001 1 $6 .250" Pivot PS250-010 10 $54 .250" Pivot PS250-100 10 $480
.250" Stainless Pivot Bushing:
Like our pivots, our bushings are machined to very tight tolerances of -0.0 to +.0002". This pivot is made from 416 stainless steel and heat treated full hard to approximately HRC 42. All our pivots are professionally heat treated in a vacuum furnace. This leaves the pivots with a shiny surface. When getting items heat treated, you get what you pay for.
Ream the blade pivot hole with a .2500" reamer. The blade will move freely on the bushing. The inside diameter is .1250".
Place the bushing in the pivot hole on the blade and surface grind both pieces together. When you have ground the blade & bushing to the desired thickness, remove the bushing from the pivot hole. Then grind an additional .001" from the blade. When assembled the blade will have .0005" clearance on each side.
Use our .125" barrel pivot PS125 in the bushing. When assembling the folder, tighten the pivot screws until the liners are tight against the bushing. The extra .001" bushing width will provide the clearance needed for the blade to move.
Description Item No Qty Price .250" Pivot Bushing PSB250-001 1 $2 .250" Pivot Bushing PSB250-010 10 $18 .250" Pivot Bushing PSB250-100 100 $160

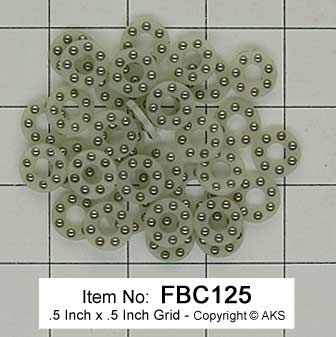

Bearings For PS125 Pivot:
The ball bearings are hardened 52100 and the carrier is nylon. This bearing is made to work with our .125" pivot. It slides freely over the shaft of the pivot with minimal excess play.
Description Item No Qty Price Folder Bearings FBC125-002 2 $3 Folder Bearings FBC125-020 20 $27 Folder Bearings FBC125-200 200 $240

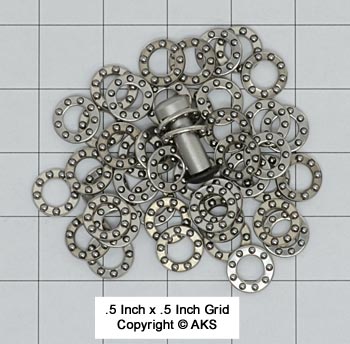

Bearings For PS187 Pivot:
The ball bearings are hardened 440C and the carrier is stainless steel. We included a PS187 pivot in the photo for size reference.
Description Item No Qty Price Folder Bearings FBS187-002 2 $4 Folder Bearings FBS187-020 20 $36 Folder Bearings FBS187-200 200 $320
Bearings For PS250 Pivot:
The ball bearings are hardened 52100 and the carrier is stainless steel. We included a PS250 pivot in the photo for size reference.
Description Item No Qty Price Folder Bearings FBC250-002 2 $7
.0625" Stainless Steel Ball Bearings:
Our ball bearings are made from 440C. They are heat treated and cryogenically treated to HRC 60.
The ball specifications are:
Grade: 25
Sphericity: .000025"
Diameter Tol: .00005"
Surface Finish: 2
Description Item No Qty Price Folder Bearings SSB062-001 100 $4 Folder Bearings SSB062-010 1,000 $32 Folder Bearings SSB062-100 10,000 $240
.250" Stainless Pivot Screw:
This screw is used with our .250" pivot item number PS250. The screw is #8 with 64 threads per inch. The high number of threads make it easy to adjust the blade tension. The thread is non-standard. If you want a tap it must be custom made.
The screw is made from heat treated 416 stainless steel. The drive recess is a T10 Torx.
Description Item No Qty Price 8-64 Screw For .250 Pivot PSS864-001 1 $3 8-64 Screw For .250 Pivot PSS864-005 5 $10
.250" Stainless Pivot Plain Head Screw:
This screw is used with our .250" pivot item number PS250. The screw is #8 with 64 threads per inch. The high number of threads make it easy to adjust the blade tension. The thread is non-standard. If you want a tap it must be custom made.
The screw is made from heat treated 416 stainless steel. The head of this screw is plain so you can machine your own drive recess.
Description Item No Qty Price 8-64 Screw For .250 Pivot PSS864P-001 2 $3 8-64 Screw For .250 Pivot PSS864P-005 5 $10
Vibra-Tite VC-3 is a different kind of thread locker/sealer. Most thread lockers are good for one use. As soon as the screw is turned, the thread locker is broken and must be reapplied. Screws assembled with VC-3 can be disassembled and reassembled up to five times without reapplying. This means you can adjust pivot screws without worrying about the screw coming loose later.VC-3 is a blend of acrylic resins. Apply VC-3 to threads and allow to dry for 30 minutes. After the locker/sealer dries the fastener is ready to use.
We recommend thinning VC-3 50/50 with methyl ethyl ketone (MEK) when using on small screws.
Size Description Item No Price .017 oz. Vibra-Tite VC-3 Thread Locker/Sealer VC3-017 $6 1 oz. Vibra-Tite VC-3 Thread Locker/Sealer VC3-100 $19

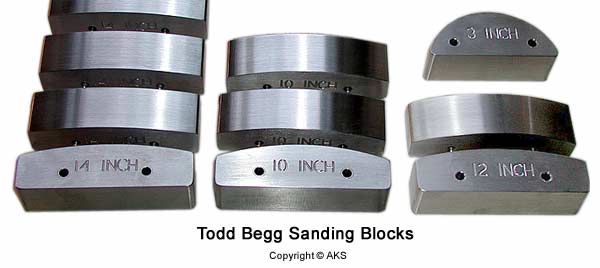

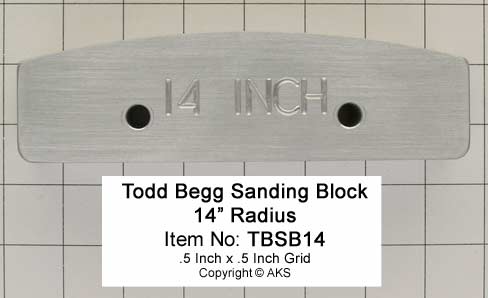

Description Item Number Thick Length Depth Price Todd Begg Sanding Block - 12" Radius TBSB12 1.0" 3.5" 1.0" $65 Todd Begg Sanding Block - 14" Radius TBSB14 1.0" 3.5" 1.0" $65
